DESCRIPTION & TECHNICAL PARAMETERS

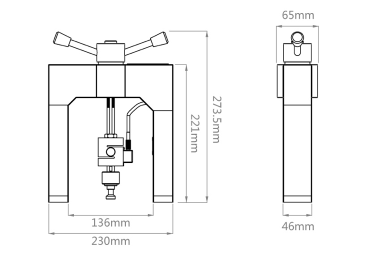

SIZE
Width: 65mm
Length: 230mm
Height: 273.5mm
Weight: 3.5kg
APPLICATION

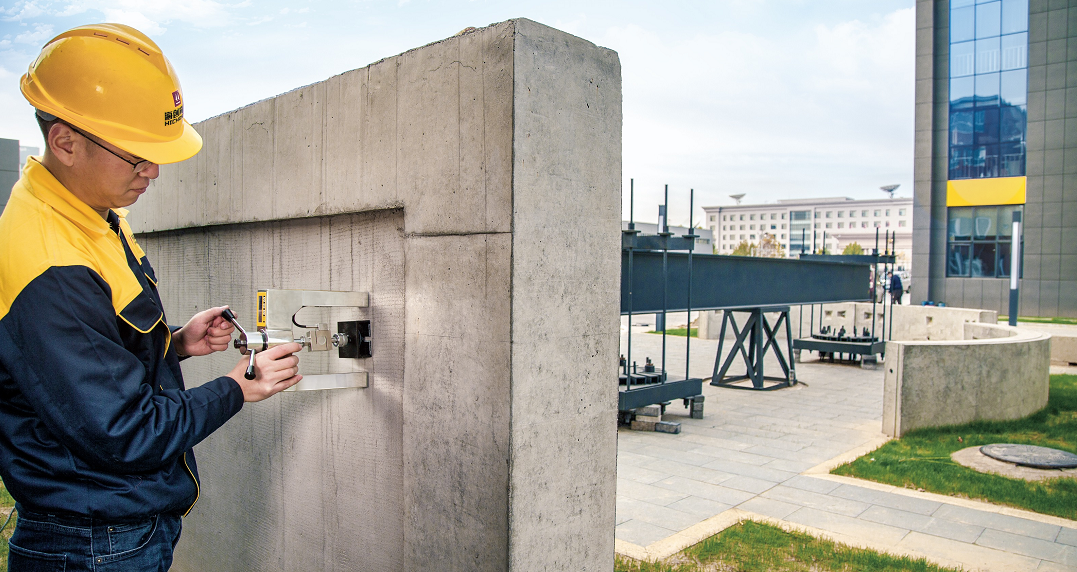

Used for the drawing force or adhesion of rivets, wall insulation materials, exterior wall facing bricks, various plates, paints, etc.
STANDARDS
JGJ144-2004, JG/T158-2013, JG149-2003, JGJ110-2008, JGJ126-2015, GB50550-2010 etc.
FEATURES
Portable design, easy to grasp with one hand
High precision S-shaped sensor
Peak hold, automatic record the max force values
10-section polyline correction
Automatic shutdown and backlight
meets or exceeds the specifications of JGJ 126 and several other standards
SPECIFICATIONS
Range: 0~10KN
Pulling stroke: 0~60mm
Weight: 3.5kg
Accuracy: 0.5%F.S
Memory:200 test points
Battery: 4.2V lithium battery
