DESCRIPTION & TECHNICAL PARAMETERS
APPLICATION

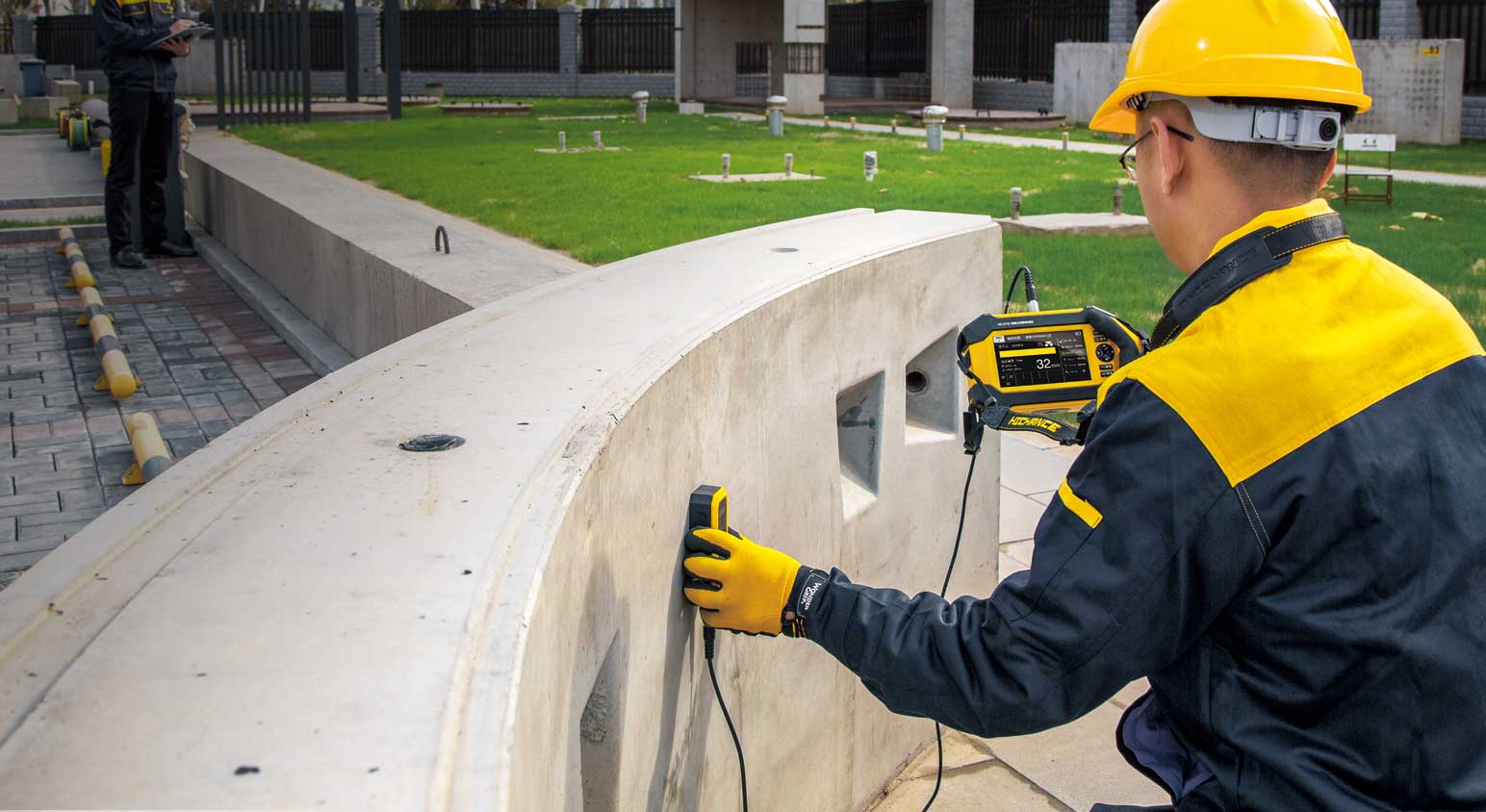

Used for the detection of concrete cover depth as well as the localization, distribution and direction of rebar.
STANDARDS
GB 50010-2010, GB 50204-2015, GB/T50344-2004, JGJ/T152-2008, DB11/T365-2016, GBT/50784-2013, JJF1224-2009 etc.
FEATURES
LED light indicator, easy to locate the rebars
Advanced algorithm for nearby rebar correction
Automatic cover calibration
Bluetooth data transmission, real-time upload of data through mobile APP
Replaceable battery and USB ports for quick and easy data transfer
Powerful PC software for data analysis and report generation
Meets or exceeds the specifications of JGJ/T 152-2008 and several other standards
SPECIFICATIONS

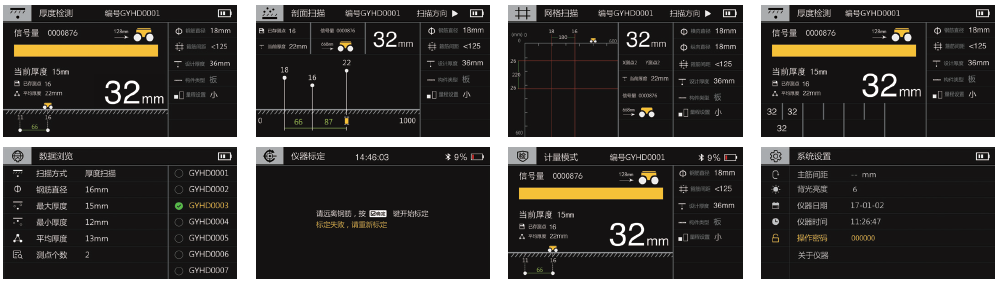

Display: 5.0-inch ISP color LCD
Memory: 2,000,000 rebars
Battery: quick release lithium battery, used continuously for 21 hours
Rebar diameter range: ∅6mm~∅50mm
Small range: 6~95mm, depending on diameter
Big range: 7~190mm, depending on diameter
Cover accuracy: ±1mm: 1~80mm, ±2mm: 81~120mm, ±4mm: 121~190mm
Diameter estimate accuracy: ±1 grade
